Intelligent edge computing and 4G/5G communication relay module for TTA UAV platforms. Extends range, enables real-time edge AI inference, and supports mesh networking.
Edge AI Computing: On-board neural processing enables real-time AI inference without cloud connectivity.
4G/5G Communication: High-bandwidth cellular relay extends drone operational range beyond line-of-sight.
Compact Integration: Lightweight module mounts directly on TTA UAV platforms without significant payload impact.
Extended Range: Communication relay capability extends operational radius for Beyond Visual Line of Sight missions.
BVLOS Operations: Extend communication range for beyond-visual-line-of-sight missions in remote areas.
Real-Time Video Streaming: Live HD video relay for command center monitoring of drone operations.
Edge AI Processing: On-board object detection, classification, and anomaly identification without cloud latency.
Emergency Communications: Temporary communication relay for disaster response and field operations.
Integrated 4G/5G modem, edge AI processor, and video encoder. Compatible with all TTA multi-rotor and VTOL platforms. Antenna options: omnidirectional (standard) and directional (long-range).

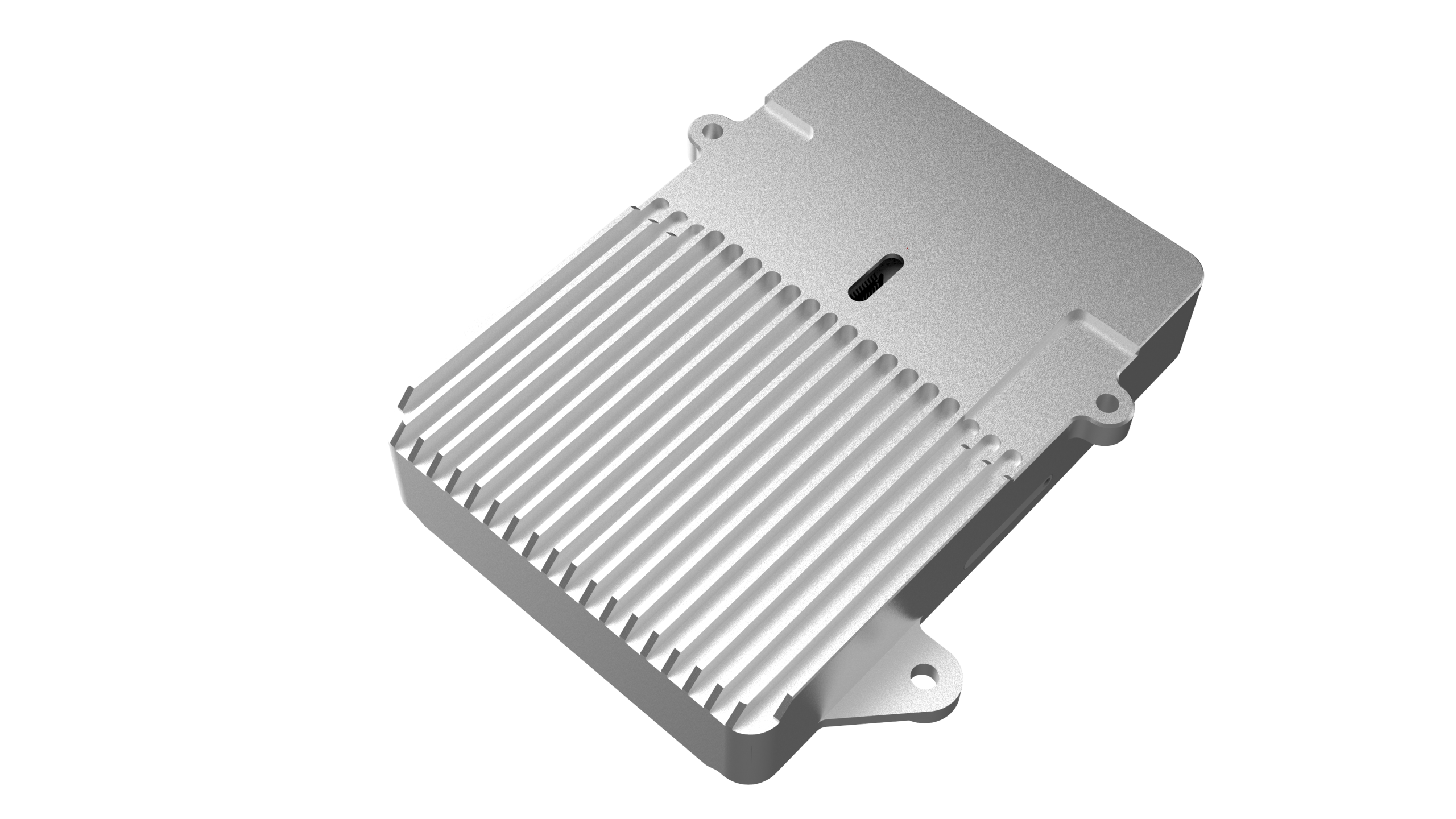

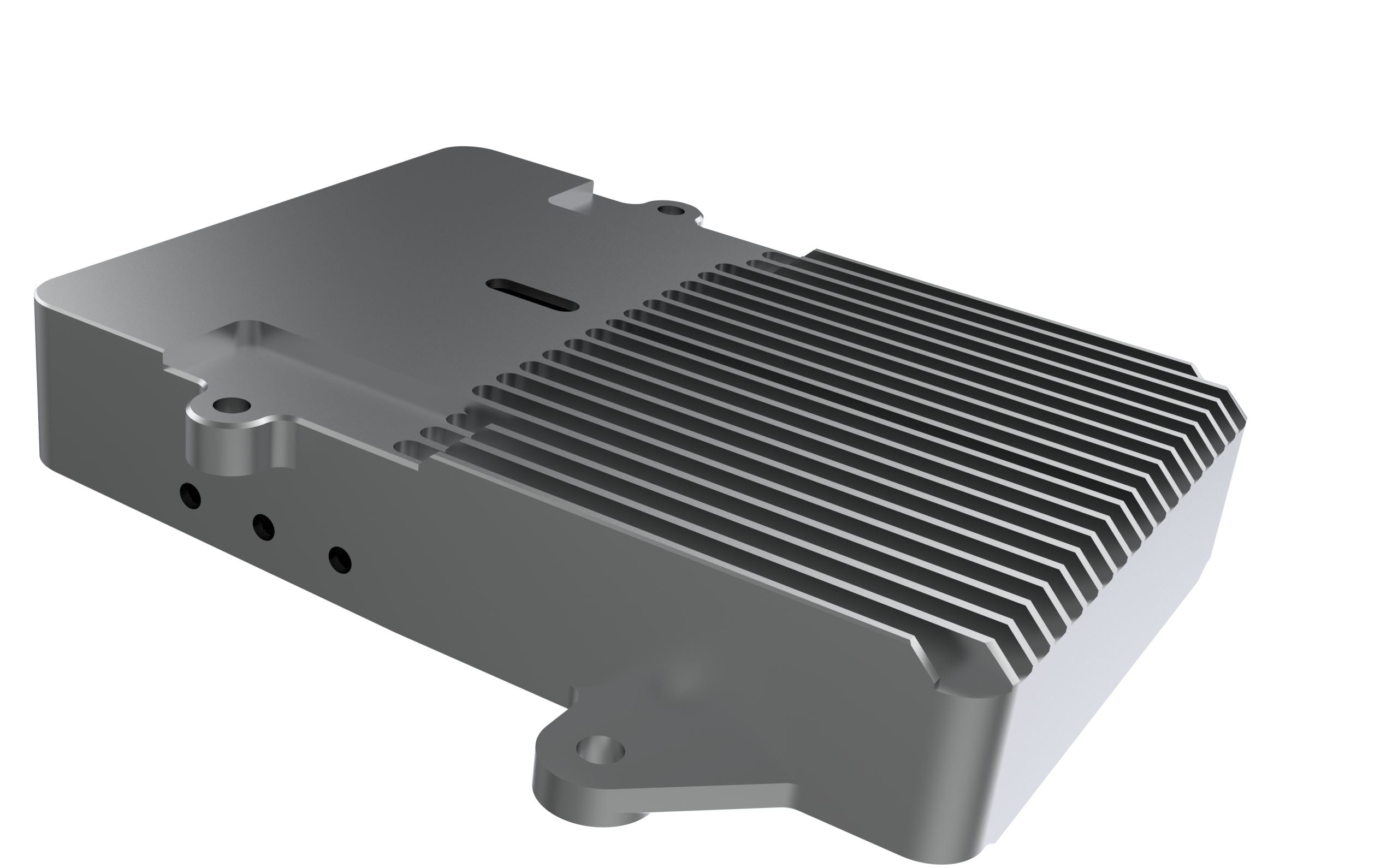

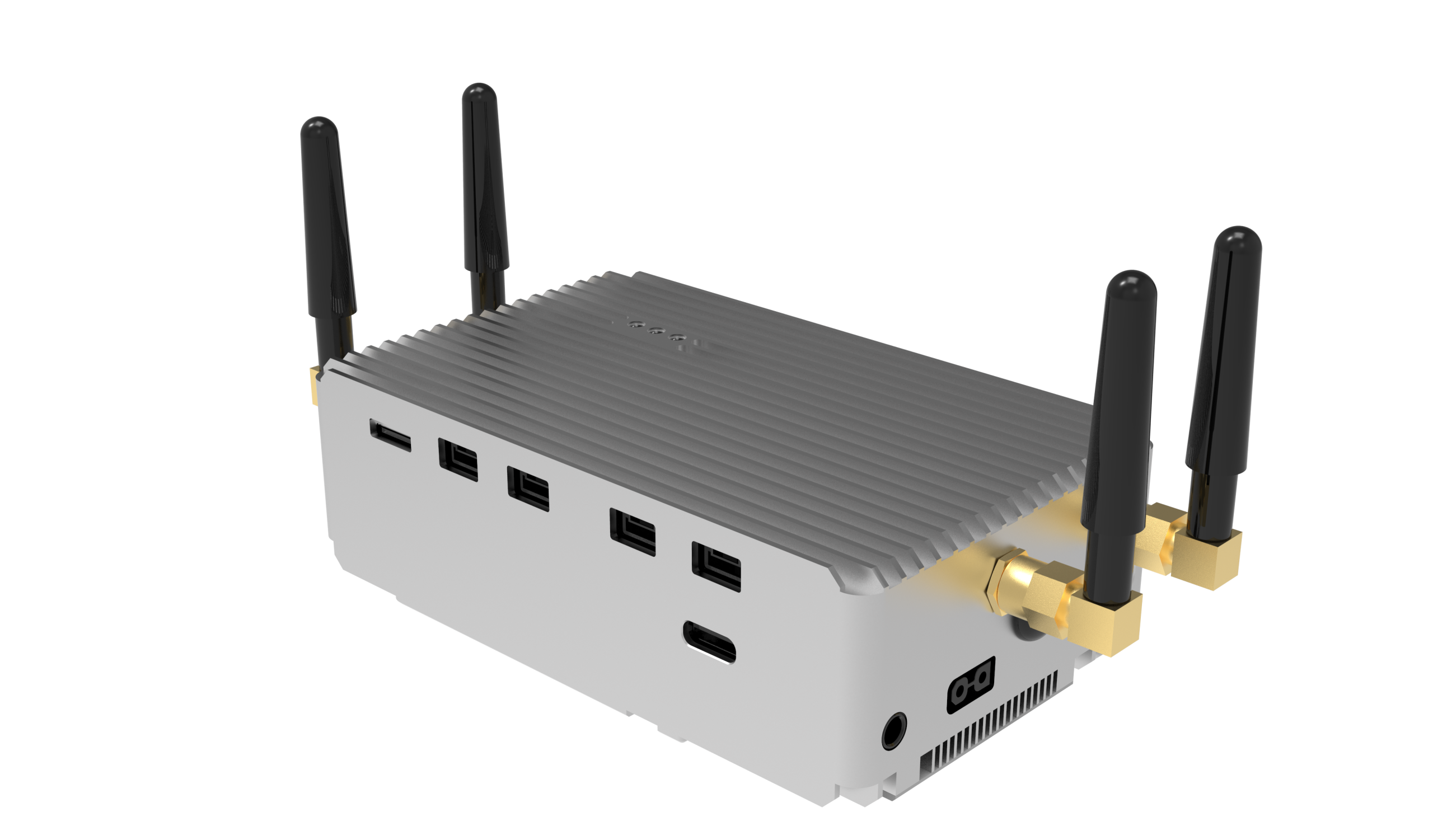

The TTA M3 Cloud Box is an intelligent drone accessory that mounts to compatible TTA UAV platforms. It provides edge AI inference (no cloud latency), extends communication range via 4G/5G mesh networking, and acts as a relay node in multi-drone formation operations.
| Parameter | Specification |
|---|---|
| Weight | 320 g |
| Dimensions | 120×80×40 mm |
| AI Processor | 4 TOPS NPU |
| Memory | 8 GB RAM / 128 GB Storage |
| Connectivity | 4G LTE / 5G NSA+SA / WiFi 6 |
| Video Decode | 4K H.265 / H.264 |
| IP Rating | IP55 |
| Power | Drone Battery (12V–28.8V DC) |
| Operating Temp | -30°C to 70°C |
Contact our sales engineering team for volume pricing, OEM configurations, and custom payload options.
