Long-endurance VTOL fixed-wing with 4-hour flight time and 80–120 km/h cruise. No runway required. Designed for large-area mapping, corridor inspection, and maritime patrol.
4-Hour Endurance: Extended flight time covers vast areas without refueling or battery swap.
VTOL Capability: Vertical takeoff and landing eliminates the need for runways or launch equipment.
80-120 km/h Cruise Speed: Efficient cruise speed maximizes area coverage per mission.
No Runway Required: Operates from any flat surface including rooftops, fields, and vehicle-mounted platforms.
Large-Area Mapping: Aerial survey of hundreds of hectares per flight for topographic, cadastral, and land-use mapping.
Corridor Inspection: Power lines, pipelines, railways, and highways with continuous linear coverage.
Coastal & Maritime Surveillance: Extended-range monitoring of coastlines, shipping lanes, and offshore installations.
Agricultural Crop Survey: Large-farm NDVI mapping and crop health assessment in a single flight.

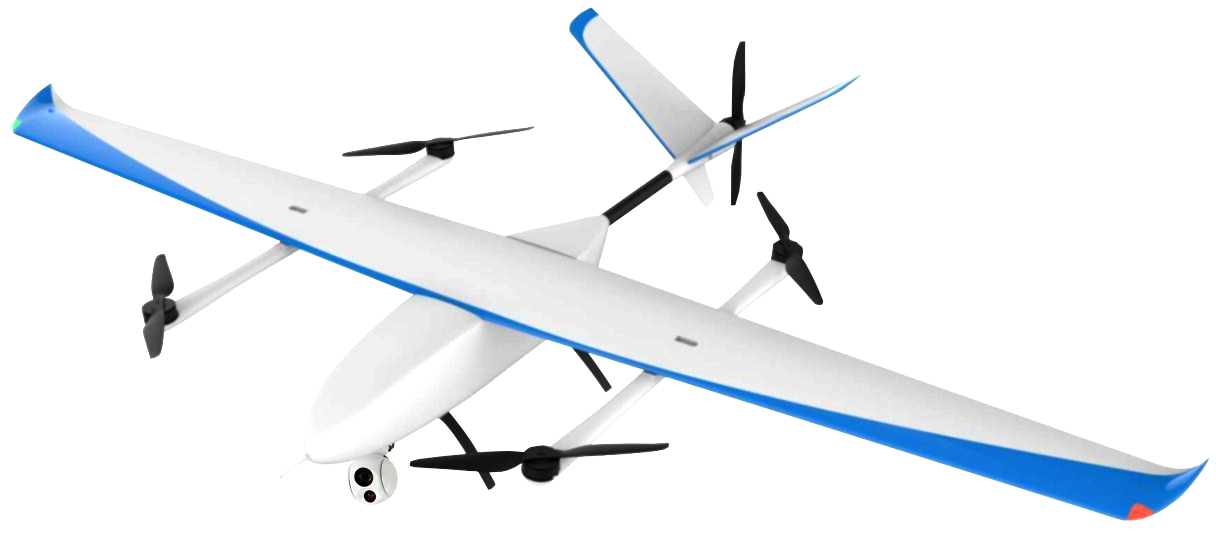

Standard mapping camera payload. Compatible with: multispectral sensors, LiDAR systems, and custom payload integrations up to 1.5 kg. Modular payload bay for quick mission reconfiguration.

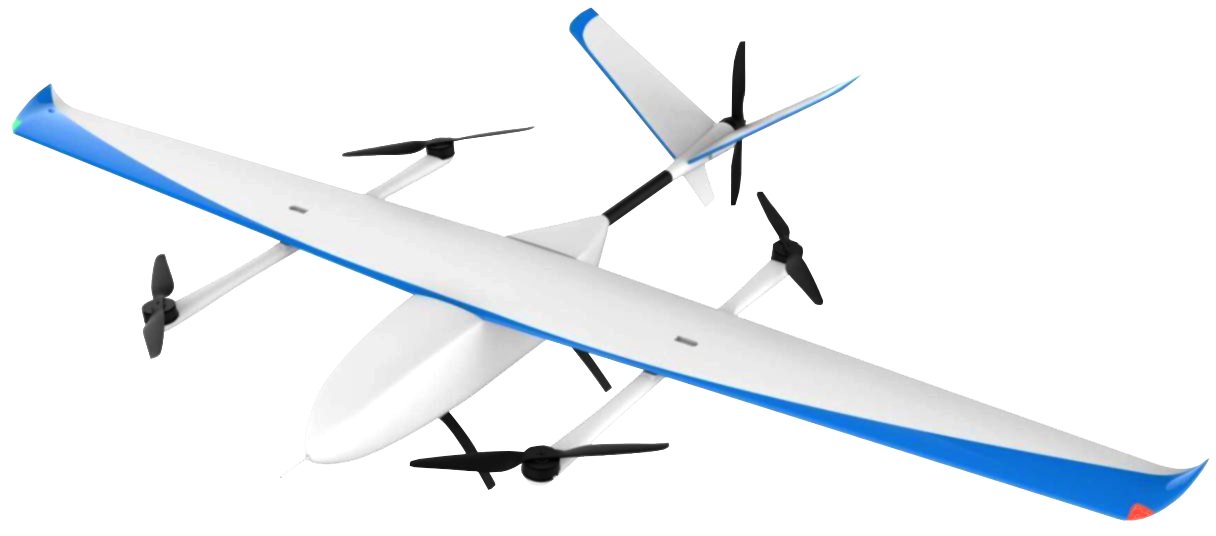

The TTA SP11 Plus combines multi-rotor vertical takeoff convenience with fixed-wing cruise efficiency. With a 4-hour endurance and 120 km/h cruise capability, it covers vast areas on a single charge — ideal for photogrammetric surveys, pipeline corridor inspection, and extended maritime patrol missions.
| Parameter | Specification |
|---|---|
| Max Takeoff Weight | 7,500 g |
| Max Flight Time | 4 hours |
| Cruise Speed | 80–120 km/h |
| Stall Speed | 55 km/h |
| Max Range | 50 km (one-way) |
| Payload Capacity | 1.5 kg |
| Wingspan | 2,400 mm |
| Service Ceiling | 4,500 m ASL |
| Wind Resistance | Level 6 (13 m/s) |
| IP Rating | IP55 |
| Autopilot | Dual Redundant RTK |
Contact our sales engineering team for volume pricing, OEM configurations, and custom payload options.
